SNC2 series

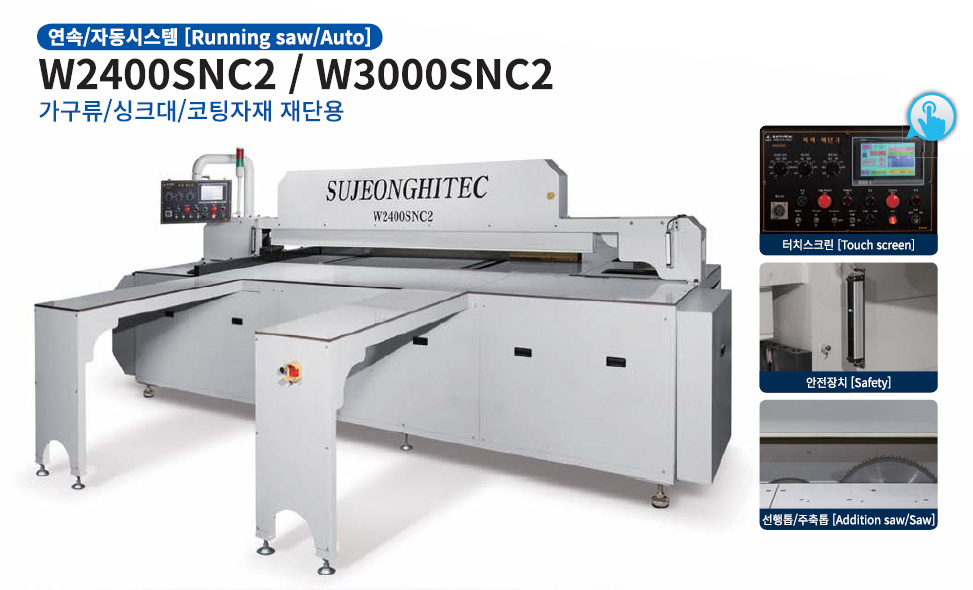

ㆍW2400SNC2 / W3000SNC2
Main features and specifications
| MODEL | W2400SNC2 | W3000SNC2 | ||
| Processing dimensions (WxHxT) | 2,450X1,520X70 | 3,050X1,520X70 | ||
| Main saw diameter / leading saw diameter | 12 or 14 inches / 8 inches | |||
| Air Ball | front | 10Ø | ||
| Air pressure | External AIR | 6kgf/㎠ | ||
power |
Saw(controllable rpm) | spindle saw | 10HP | |
| Addition saw | Leading saw | 3HP | ||
| Moving to saw | Spindle forward and backward transfer | 0.5HP | ||
| Moving Stopper | adae | 1.5HP under control Servo motor 1.5HP server control |
||
| safety device | Clamp, safety cover, safety Beam, EMO Clamp, safety cover, beam, emergency switch |
|||
| Body | Body (W x L x H) | 4,200 x 2,600 x 1,600 | 4,800 x 2,600 x 1,600 | |
| Auxiliary table | Auxiliary work bench (W x L) | 400 x 800 | ||
| Power used | 380V / 60Hz (3Ø, 4wires) 380V / 60Hz (3 phases, 4 wires) | |||
| Job control | Touch screen, Buttons touch screen, buttons |
|||
| Operation function | Running saw, auto, manual Continuous operation, automatic, manual |
|||
characteristic
▲ The installation space is similar to that of a standard table cutter workspace.
▲ Cheap price and operating cost compared to existing running show equipment
▲ Simple operation with touch screen program
▲ Thorough management through follow-up management system
▲ Improved work speed through intermediate stop function tailored to the product
▲ Continuous work, automatic, and manual work possible depending on work characteristics
